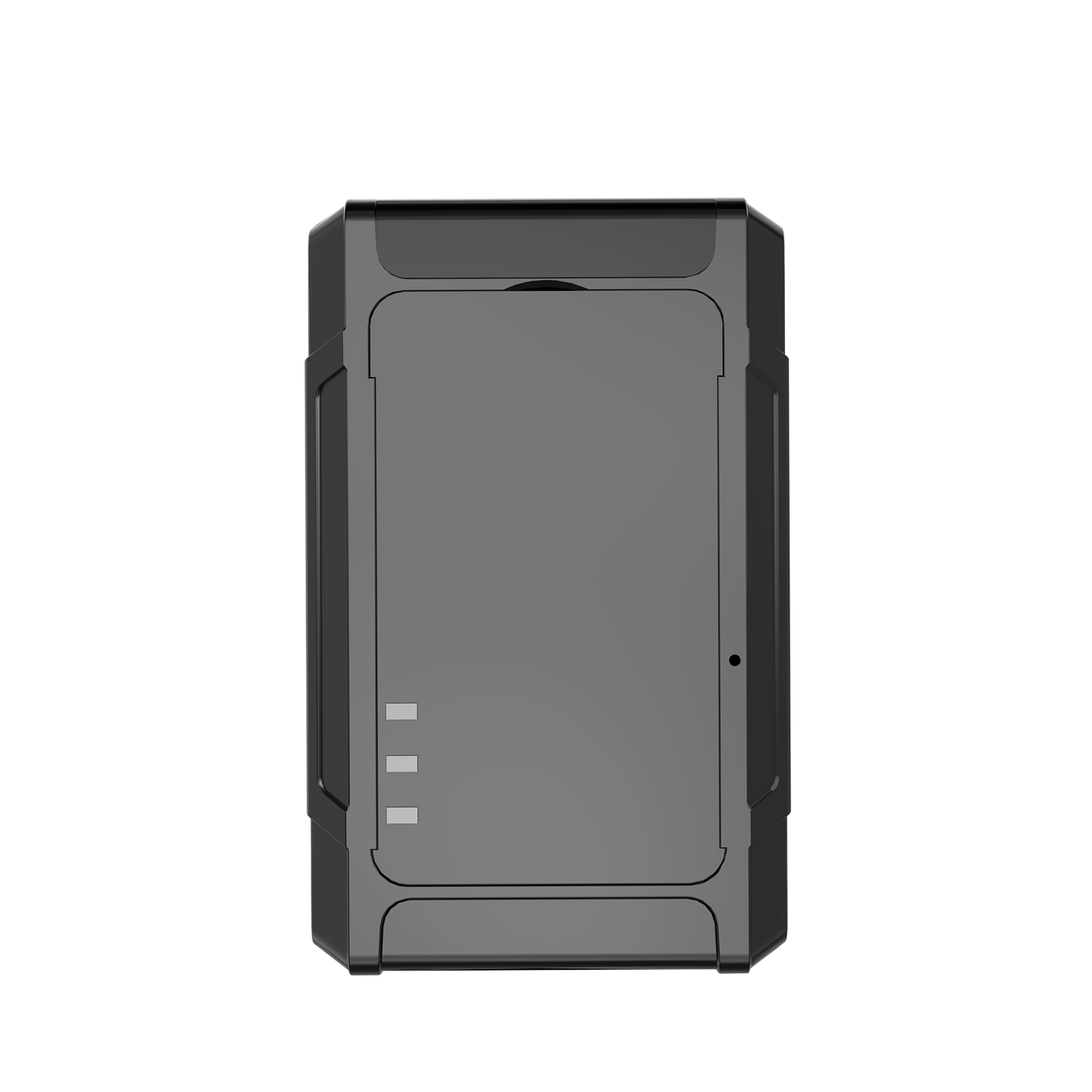

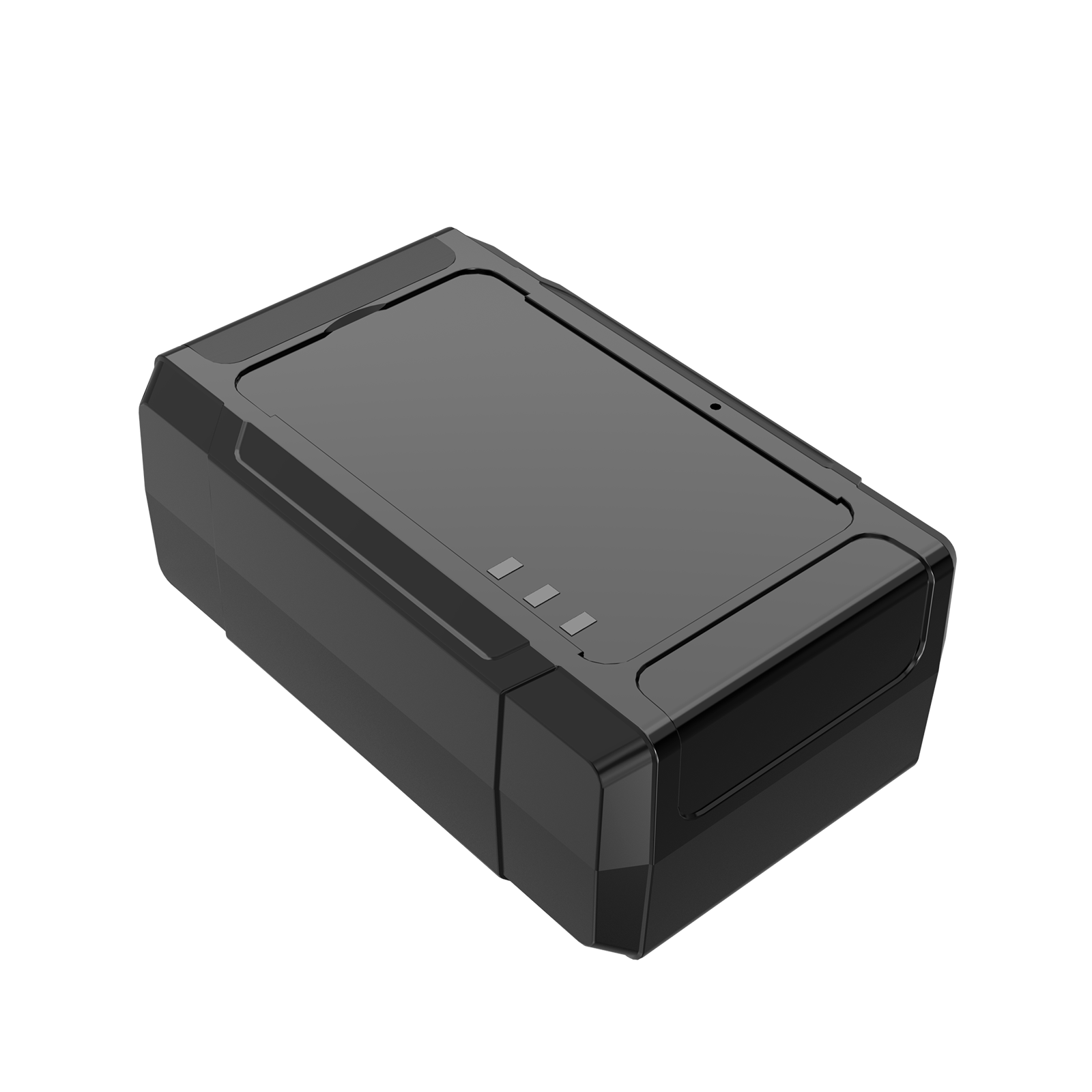

VT03F Multiple Function GPS Tracker
VT03F is an easy device can be flexibly installed with strong built-in magnetic. IP65 water resistance ensure it work in heavy humidity environment. Under different working mode, the device can work as long as 30 days or standby at 1 year without recharge in maximum.
Features
Long Battery Life
GPS+BDS Dual Positioning
Offline Data Storage
Magnetic Mount
Reliable 4G with 2G Fallback
Multiple Tracking Modes
Functions
Real-Time Location Monitoring
Low Battery Alert
Historical Route Playback
Tamper Alert When Removed
Remote Configuration
Sleep Mode For Theft Recovery
Specifications
6000mAh
Battery capacity
96 Hours
Run-time
50 Days
Standby time
3.6-4.2V
Working voltage
50mA
Working current
-20℃ to +70℃
Working temperature
5mA
Standby current
5% to 95%
Working humidity
80x50x35 mM
Dimension
166.7g
Weight
Parameters
Positioning System
GPS+BDS
GPS Frequency
L1
Cellular Connectivity
GSM / LTE Cat.1
GPS Sensitivity
-160dBm
Acquisition Sensitivity
-144dBm
TTFF Open Sky
Cold Start≤45s, Hot Start≤10s
Location Accuracy
≤ 5m
LED Indicator
Blue-GNSS, Green-Cellular, Red-Power
GPS Antenna
Ceramic Antenna
Cellular Antenna
FPC Antenna
Cellular Frequency
Quad-band 850/900/1800/1900 MHz
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
TDD-LTE: B34/B38/B39/B40/B41
